Ground Lock Resin Cartridges

Product Ratings 5 Out of
  • Referential Price :
    USD 0.48 - 3.80 / Unit(s)
  • Min. Order : 10,000 Unit(s)
  • Port : By Sea / PE - CALLAO
  • Payment Terms : WIRE TRANSFER(T/T) , OTHERS
Two-compartment fast setting resin cartridges for anchoring rock bolts in underground mining and civil tunneling. Request additional information.
Product Details
  • Production Capacity : 500,000 Unit(s) per month
  • Packing Details: Box for 50 units - 50 boxes per pallet.

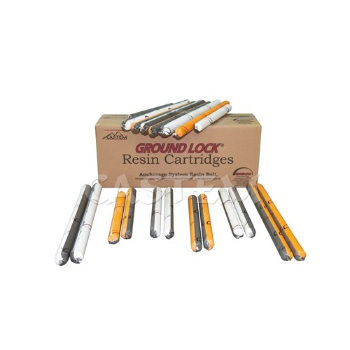

The GROUND LOCK resin cartridges have been developed in order to be used for anchoring bolts, as part of the support systems in mining or civil works and are specially designed for optimal performance in both manual and automated installation procedures.  This product is made up of a component based on polymers and another based on organic peroxides in a compartment separated by a polyester film. When mixing both components in the anchor systems installation, an instantaneous chemical reaction occurs that allows the anchor bolts to be fixed.

Available diameters: 28, 30, 32, 34, 36, 38, 40 and 42mm.

Available lengths: from 300 to 610mm.
